CORNER PLATE

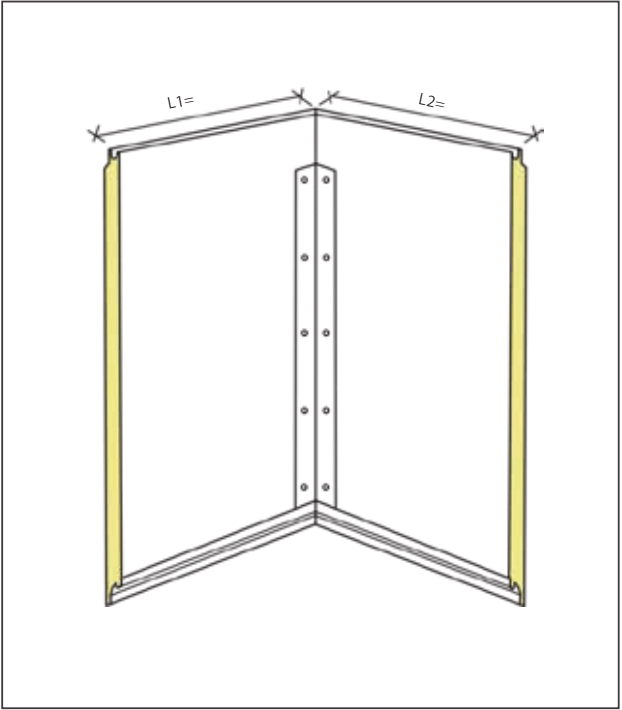

▶ CORNER PLATE



▶ CORNER PLATE



▶ DETAILS

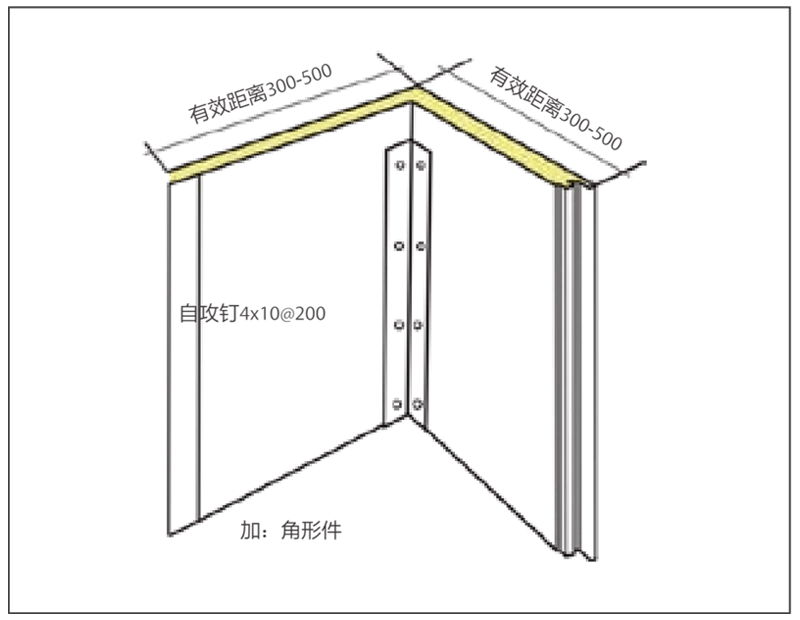

▶ INSTRUCTIONS

When installing, install the lower roof panel first, and then paste the mastic before installing the roof panel.


ROOFING PITCH

SPTICE LEMGTH（mm）

≤1/10

300

>1/10

200
