The cold storage board has excellent thermal insulation performance, good mechanical properties, simple structure, quick installation, beautiful appearance, classic and durable. It is specially designed for cold storage and cold storage room with thicknesses of 100, 120, 150, 200, 250, etc.
PERFORMANCE DESCRIPTION

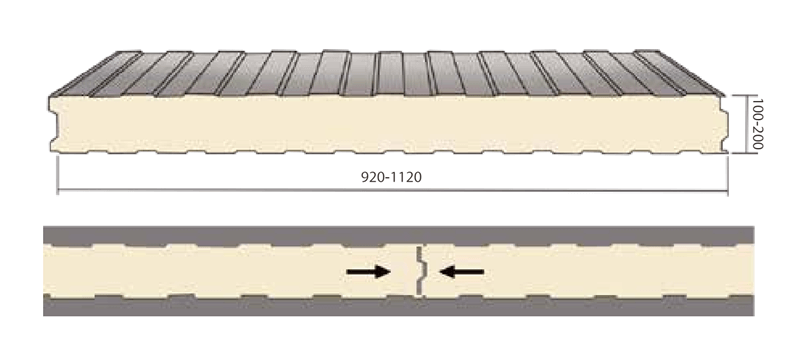

The concave-convex groove structure improves the insulation and air-tightness of the joints of the plates, which is specially designed for cold storage rooms and warehouses;
The board is uniform and stable, with excellent heat insulation and waterproof performance;
Light weight, beautiful appearance, effectively solve the temperature difference in the refrigeration industry;
Within a certain modulus, the library body can be freely changed in the three directions of length, width, and height, and can be expanded or reduced as needed. The assembly board can also be disassembled and reinstalled in different places, which is simple and quick to install.
PARAMETERS TO DESCRIBE | |
Sheet name | Cold storage board |
Effective cover | 920-1120mm |
Steel thickness | 0.4-0.7 |
Regular color | White grey, crimson, navy blue, iron grey, etc |
Recommend coating | Fluorocarbon coating PVDF, SMP coating, HDP coating, polyester PE coating, etc |
The thickness of the core material | 100、120、150、200, etc |
The name of the core material | Polyurethane (pu) |
Coefficient of thermal conductivity | ≤0.023w/m·k |
