Energy saving insulation -

The insulation performance is superior, the insulation effect of the same thickness is 2 times that of EPS board.

Fire retardant -

The products have passed the inspection of national quality supervision center for fixed fire extinguishing systems and fire-resistant components, and the combustion grade has reached the standard of GB8624B2.

Air tight and sound proof -

Sound absorption is good, and the sound caused by the impact of rain, hail and so on has the abatement effect.

Waterproof and rust proof -

Large span, fast drainage, good waterproof effect;The screw is hidden, not easy to rust, prolong the service life of the plate.

Aesthetic economy -

Beautiful appearance, rich color;Reduce material loss, save construction time and engineering costs.

Fast construction -

Polyurethane sheet is produced in a highly controlled, constant temperature environment in the factory, with stable quality;It is fast in construction and has been used for more than 35 years.


PERFORMANCE DESCRIPTION

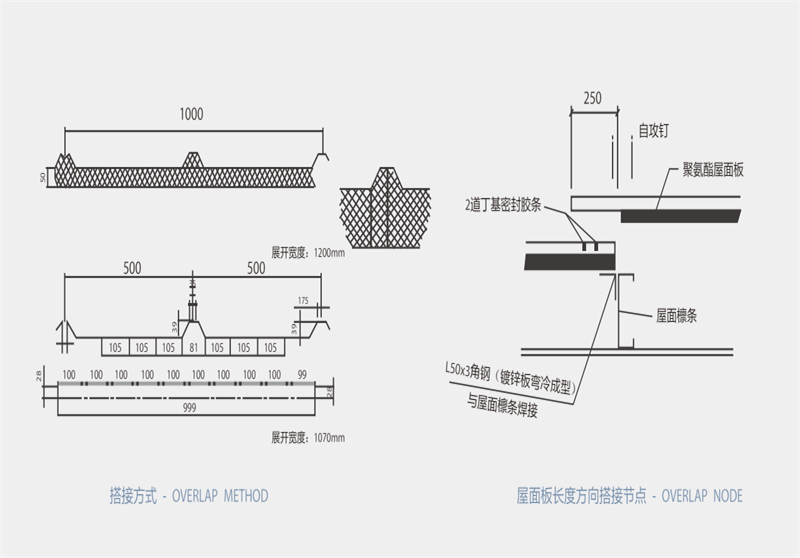

PARAMETRIC DESCRIPTION
Sheet name	roof boarding
Effective cover	1000mm
Steel thickness	0.4-0.7
Regular color	White grey, crimson, navy blue, iron grey, etc
Recommend coating	Fluorocarbon coating PVDF, SMP coating, HDP coating, polyester PE coating, etc
The thickness of the core material	50、60、75、80、100Etc.
The name of the core material	Polyurethane (pu)	Polyurethane edge sealing fiberglass wool	Polyurethane edge sealing rock wool
heat conductivity coefficient	≤0.023w/m·k	0.035-0.041w/m·k	0.037-0.043w/m·k

HEAT TRANSFER COEFFICIENT

The whole thickness	K value （K/㎡h℃）	Heavy plate	The load distribution
			Simply supported（mm）							continuous（mm）
			P=kg/㎡	60	80	100	120	150	200	60	80	100	120	150	200
45	0.36	11.85	L=	4354	3850	3484	3201	2871	2472	4876	4312	3902	3585	3215	2768
50	0.32	12.05	L=	4606	4070	3680	3378	3027	2602	5158	4558	4212	3783	3390	3914
60	0.27	12.45	L=	5088	4489	4054	3716	3323	2848	5698	5027	4540	4146	3721	3189
75	0.21	13.05	L=	5767	5078	4578	4190	3738	3192	6459	5687	5127	4692	4186	3575
100	0.16	14.05	L=	6818	5993	5393	4927	4385	3731	7636	6712	6040	5518	4911	4178
120	0.13	14.85	L=	7616	6690	6017	5494	4886	4152	8529	7492	6739	6153	5472	4650
150	0.11	16.05	L=	8780	7716	6943	6343	5644	4800	9833	8641	7776	7104	6321	5376

Note: The values in the table above are taken from the outer plate 0.6mm, the inner plate 0.5mm, and the polyurethane capacity 40kg/m³

HEAT TRANSFER COEFFICIENT

The whole thickness	K value （K/㎡h℃）	Heavy plate	The load distribution
			Simply supported（mm）							continuous（mm）
			P=kg/㎡	60	80	100	120	150	200	60	80	100	120	150	200
50	0.64	13.08	L=	4520	3975	3580	3273	2916	2484	5062	4452	4009	3665	3265	2782
75	0.43	14.63	L=	5631	4931	4421	4026	3566	3012	6306	5522	4951	4509	3993	3373
100	0.32	16.18	L=	6639	5798	5186	4711	4159	3995	7435	6493	5808	5276	4658	3914

Note: The values in the table above are taken from the outer steel plate 0.6mm, the inner steel plate 0.5mm, and the capacity of rock wool is 120kg/m³
